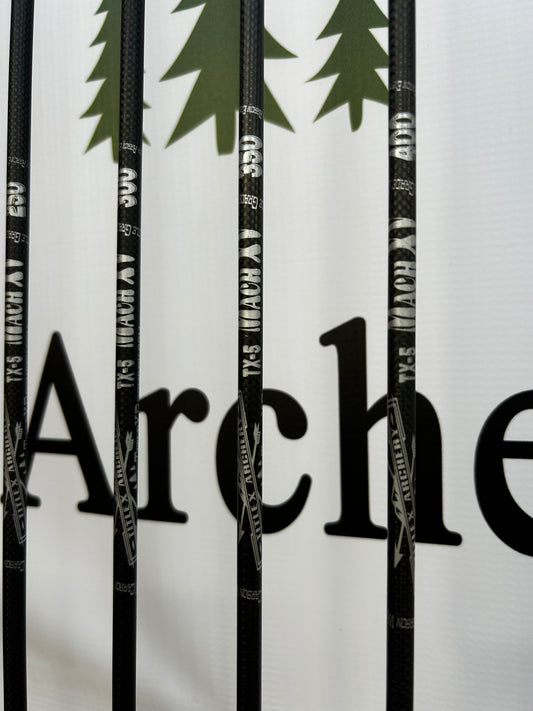

Arrow Rack – TitleX TX-5 5mm (.204) Arrows

Build your perfect setup with TX-5 5mm (.204) arrows in Bare Shaft or Pre-Fletched options. Title Grade construction, ±0.001" straightness, weight-matched consistency, and a high-strength 1K carbon weave deliver stability, penetration, and accuracy for hunting, 3D, and target archery.

Shop Your Build

  • TX-5 Fletched (Dozen): 3 standard color configurations, nocks & inserts included
  • TX-5 Bare Shafts (Dozen): Ready to cut, fletch, and tune; nocks & inserts included

Spine Options

  • 250 (gpi 11.2)
  • 300 (gpi 10.2)
  • 350 (gpi 9.2)
  • 400 (gpi 8.4)

Key Benefits

  • Micro-diameter 5mm: Less wind drift, deeper penetration
  • ±0.001" straightness: Tight groups and repeatable flight
  • 1K carbon weave: Fast recovery and durability shot-to-shot

Choose fletched for plug-and-play convenience or bare shafts for full custom builds—either way, TX-5 delivers professional-grade performance at a working-class price.

Compound bow       Arrow Length (inches) carbon to carbon
150g point 100 g point 24 25 26 27 28 29 30 31 32
Draw weight in LBS         TitleX Archery Spine Chart
  30 500 500 500 500 500 500 500 500 500
30 30-35 500 500 500 500 500 500 500 400 400
30-35 35-40 500 500 500 500 500 500 400 400 400
35-40 40-45 500 500 500 500 500 400 400 400 350
40-45 45-50 500 500 500 500 400 400 400 350 350
45-50 50-55 500 500 500 400 400 400 350 350 300
50-55 55-60 500 500 400 400 400 350 350 300 300
55-60 60-65 400 400 400 400 350 350 300 300 300
60-65 65-70 400 400 400 350 350 300 300 300 250
65-70 70-75 400 400 350 350 300 300 300 250 250
70-75 75-80 350 350 350 300 300 300 250 250 250
75-80 80-85 350 350 300 300 250 250 250 200 200
